Cudy Dual 4K 13 in 1 10GB Docking Station | CS700

Cudy Dual 4K 13 in 1 10GB Docking Station | CS700

SKU: 6971690793098

Works via a USB-C 3.2 Gen 2x1 Port or Higher

Works with systems that have a USB-C with 10 Gbps bandwidth and PD function, covering

  • Mac with M Chipset (Including Macbook Air/Pro M1/M2/M3)
  • Asus Zenbook, Dell XPS, HP Spectre, Lenovo ThinkPad/Yoga, Galaxy Book, etc. (Requires a 10 Gbps PD USB-C Port)
  • Chromebook with a 10 Gbps PD USB-C Port

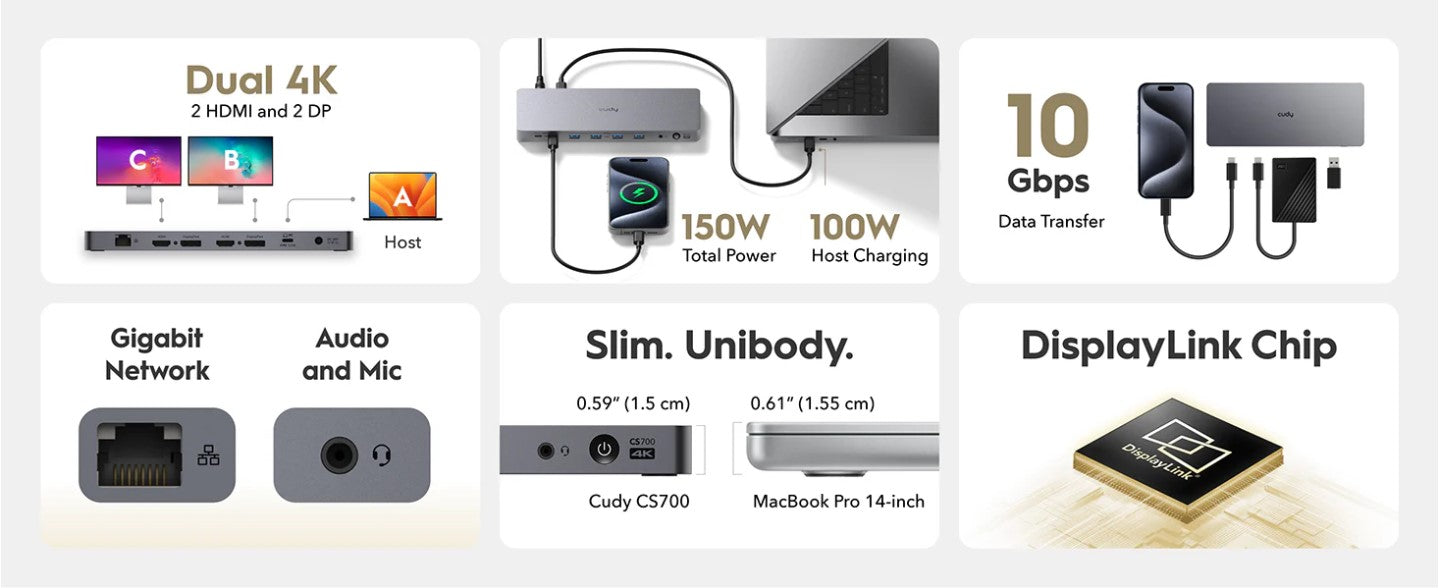

Charges Multiple Devices During and After Work

Charges a MacBook Air/Pro to 90% within 1.5 hours. *Tested with active document workflow; actual speed may vary. The total power supply is 150 W.

  • 1× 100W Upstream USB-C (Max)
  • 2× 14W USB-C (Max)
  • 4× 5W USB-A (Max)
Model Version CS700 1.0
CPU CPU Details DisplayLink

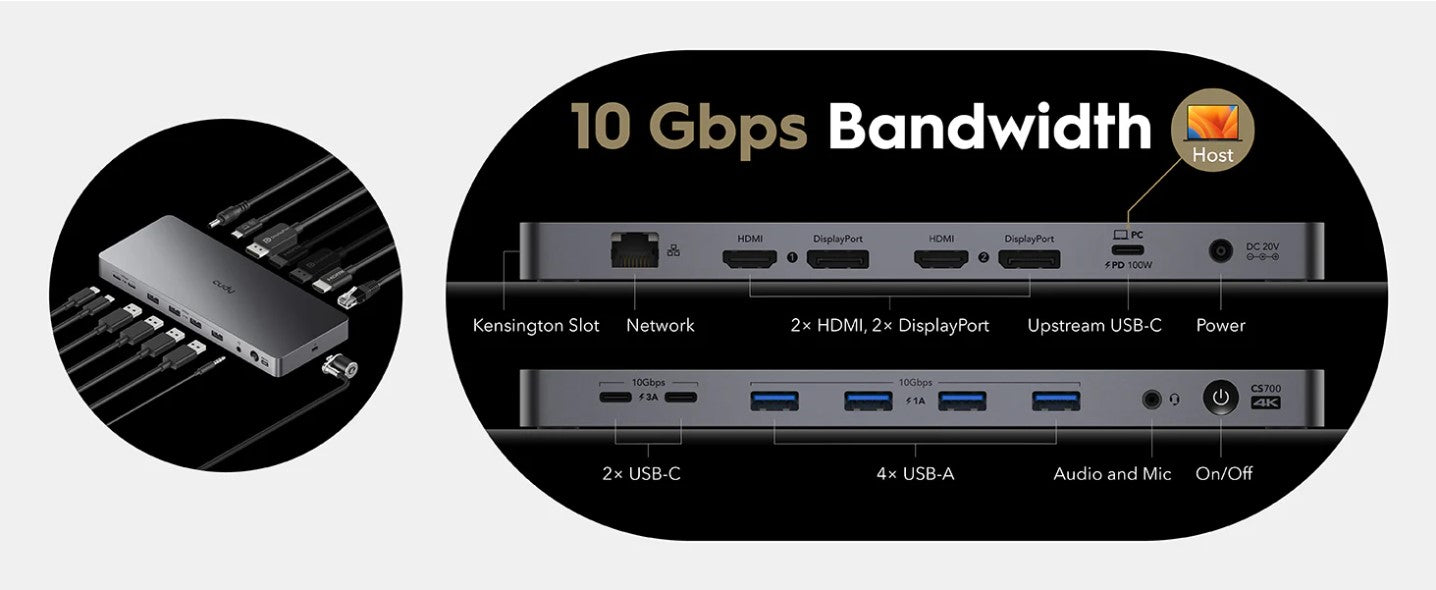

Interfaces Upstream Connection 1× USB-C 3.2 Gen 2 Port (10 Gbps, Max 100W Charging)
Video Output
  • 2× DisplayPort 1.2a
  • 2× HDMI 2.0

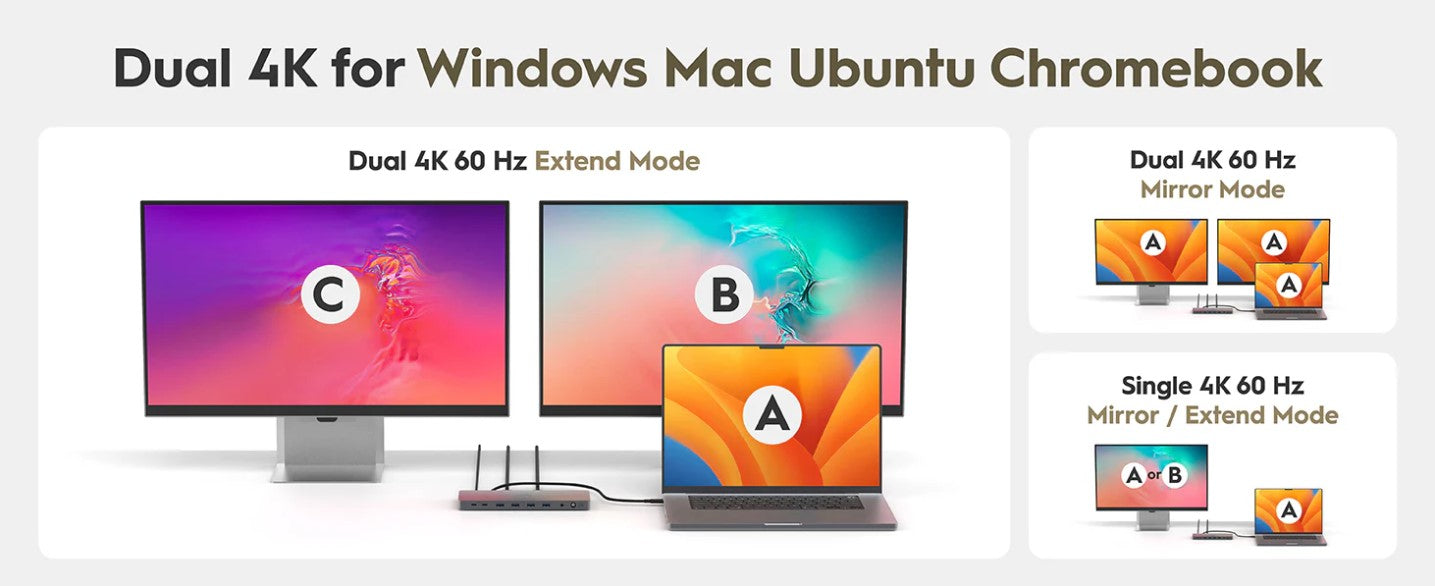

Video Output Resolutions
  • 1× 5K (5120×2880) 60 Hz or
    2× 4K (4096×2160) 60 Hz
  • 5K resolution requires connecting two DisplayPort cables to a compatible 5K monitor
Video Output Modes Extend, Mirror
Android phone supports mirror mode only
USB Ports
  • 2× USB-C 3.2 Gen 2 Ports (10 Gbps | Max 14W Charging Each)
  • 4× USB-A 3.2 Gen 2 Ports (10 Gbps | Max 5W Charging Each)
Network 1× Gigabit RJ45 Port
Audio and Mic 1× 3.5 mm Combo Jack
Power Input DC Jack
Physical Buttons Power On/Off Button
LED Power
Power Power Methods DC
DC 20V 7.5A
Power Adapter Input: 100 ~ 240 V, 50/60 Hz AC
Output: 20V 7.5A DC
Max Power Consumption (W) 150W
Idle Power Consumption (W) 2W
Physical Color Silver Gray Color, Matte Finish
Casing
  • Aluminum CNC Machining
  • Al6061 T5 Base Material
  • Sandblasting and Anodization
Security 1× Kensington Security Slot
Requirements Hardware Requirement Requires a USB-C 3.2 Gen 2 / USB4 / Thunderbolt 3/4 port on the host device
Compatible OS
  • Windows 7 or later
  • macOS 10.14 or later
  • Ubuntu LTS 18.04 or later
  • ChromeOS build RS1 or later
  • Android 5 or higher (Max 1× 1080P. Ethernet Disabled)
  • Nintendo Switch system software (When the PD-IN port is receiving power)
Driver Installation Auto driver installation for Windows 10/11 and ChromeOS R51+.
Manual driver installation is required for macOS, Windows 7/8/8.1,
and Ubuntu. DisplayLink Presenter app is required on Android.
Reliability Environment
  • Operating Temperature: -20~60 °C (-10~140 °F)
  • Storage Temperature: -40~70 °C (-40~158 °F)
  • Operating Humidity: 10–90% RH non-condensing
  • Storage Humidity: 5–90% RH non-condensing
Mechanical Product Weight 340 g (11.99 oz.)
Dimension 210×85×15.6 mm
8.27×3.35×0.61 inches
Package Content
  • CS700
  • Power Adapter
  • Installation Guide
Ordering Information Retail Package Weight EU / US: 1100 g (38.8 oz.)
Retail Package Dimension 226×95.5×98.5 mm
8.9×3.76×3.88 inches
Units per Carton 10
Carton Net Weight EU / US: 11.1 kg (24.47 lbs)
Carton Gross Weight EU / US: 11.6 kg (25.57 lbs)
Carton Dimension 49.5×23.8×21.5 cm
19.49×9.37×8.46 inches
Item price:
  • €199.95
    Unit price per
    Tax included. Shipping calculated at checkout.
Only 2 left!
