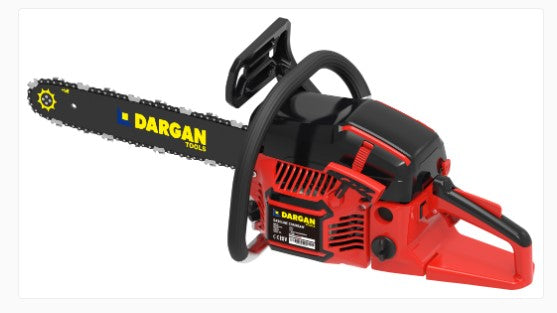

Dargan 18” 52 CC 2-Stroke Petrol Chainsaw | DG14

Dargan 18” 52 CC 2-Stroke Petrol Chainsaw | DG14

Dargan 18” 52 CC 2-Stroke Petrol Chainsaw | DG14

SKU: 5390626060676

Model no. TT-CS5200
Engine type TT-1E45F (air-cooled, 2-stroke)
Equipment mobility Hand-held
Engine displacement 52 m³
Maximum engine power 1.9 kw
Engine speed 10000 r/min
Engine idling speed 3000±300 r/min
Maximum chain speed 19.3 m/s
Spark plug TORCH L7T
Carburetor Diaphragm type
Volume of fuel tank 550 ml
Petrol and oil mix ratio Petrol 40: oil 1
Volume of oil tank 260 ml
Oil feeding system Automatic pump with adjuster
Guide Bar 18"
Saw Chain 18"
Chain pitch 0.325"
Chain gauge 0.058"
Sprocket 7 Teeth x 8.255 mm
Mass(without guide bar and chain and with empty tank) 7 kg
Guaranteed sound power level, LWA (2000/14/EC) LwA: 117 dB(A)
Tested sound pressure level, LPA (2000/14/EC) LpA: 102 dB(A), k=3 dB(A)
Vibration at Front Handle A front_hv, eq: 9.41 m/s², k=1.5 m/s²
Vibration at Rear Handle A rear_hv, eq: 8.80 m/s² , k=1.5 m/s²
Fuel consumption at max. engine power 1.18 kg/h
Item price:
  • €189.00
    Unit price per
    Tax included. Shipping calculated at checkout.
Only 2 left!
Description
Detailed description
Model no. TT-CS5200
Engine type TT-1E45F (air-cooled, 2-stroke)
Equipment mobility Hand-held
Engine displacement 52 m³
Maximum engine power 1.9 kw
Engine speed 10000 r/min
Engine idling speed 3000±300 r/min
Maximum chain speed 19.3 m/s
Spark plug TORCH L7T
Carburetor Diaphragm type
Volume of fuel tank 550 ml
Petrol and oil mix ratio Petrol 40: oil 1
Volume of oil tank 260 ml
Oil feeding system Automatic pump with adjuster
Guide Bar 18"
Saw Chain 18"
Chain pitch 0.325"
Chain gauge 0.058"
Sprocket 7 Teeth x 8.255 mm
Mass(without guide bar and chain and with empty tank) 7 kg
Guaranteed sound power level, LWA (2000/14/EC) LwA: 117 dB(A)
Tested sound pressure level, LPA (2000/14/EC) LpA: 102 dB(A), k=3 dB(A)
Vibration at Front Handle A front_hv, eq: 9.41 m/s², k=1.5 m/s²
Vibration at Rear Handle A rear_hv, eq: 8.80 m/s² , k=1.5 m/s²
Fuel consumption at max. engine power 1.18 kg/h
